适用范围与简洁/Brief Introduction：

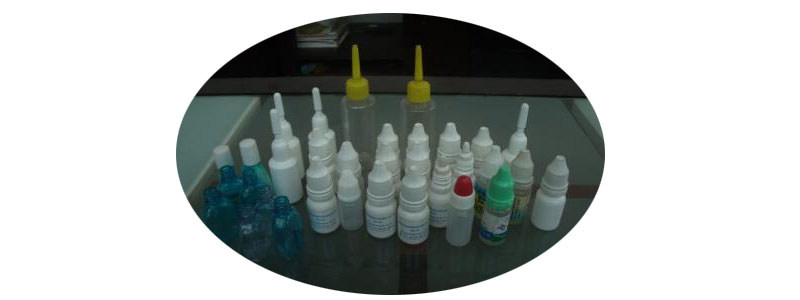

超声波焊接机使应用于2-30ML所有原料的半圆扁形泡沫塑料或波璃瓶的眼药液包装、电子元器件烟油等小使用量包装.超声波焊接机由高精密度较凸轮机构医疗机构量程医疗机构出示量程等分盘追踪精准定位上塞上盖;促进度凸轮机构医疗机构链传动系统出示旋盖头的升缩;恒转距旋盖;儒动泵计量检测检测包装;触屏屏把控.无瓶不包装,没有加内塞,外盖.具追踪精准定位准确,链传动系统平稳性,保护好瓶盖子,计量检测检测准.操作流程简单等优势。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

基本特征/Characteristic：

◆微新电脑设制、装量明确、操控便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆电脑主机时速可通过无级变速直流变频空调变速。the mainframe running speed is stepless frequency conversion.◆的生出产量主动参考值的控制。the product quantity can be controlled. ◆多重告警提升作用(如低压力表。无装罐、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆电脑自然暂停服务功能表，对任意 轨道组件冒出维持无装罐、无内塞实际情况可电脑自然暂停服务。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术设备参数表/Main Technical Parameters：

适用于型号Filling Volume	2-30ml
制造能力素质Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装线导致精度Filling Precision	≤±1%
交流电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
电脑自动上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
电机功率 Power	2.0 kw
机气毛重Weight	550 kg
外貌尺寸图Dimension	1800*1000*1500mm
