借款用途与筒介/Brief Introduction：

皮下打针纯净水设施生产设备皮下打针纯净水是纯化水经萃取所获资金，杆菌内毒物等指标值均遵循全球药典皮下打针纯净水项下约定的环境质量追求，可当营生物医药化工中小型企业中各大马上皮下打针入我们身体内制剂的稀释剂。皮下打针纯净水设施生产设备主耍收录皮下打针纯净水制取、再循环存储、动态数据分配权和方法管控等主耍信息模块。

作用/Characteristic：

◆全自动式实际方法策略，控制员误实际方法产生的生孩子重大损失；Automatic operation mode, to prevent losses of wrong operation of production;◆安全装置使用316L材料；Components in 316L texture◆带PLC把握的CIP新产品；CIP products with PLC control◆纪录与存放洗的过程的技术参数与步奏；Record and save the parameters of the cleaning process and steps◆无法GMP必须的最早能到性与可以说明性； Meet GMP requirements traceability and accountability◆合二为一化构思有无效减少地方；Integrated design can effectively save space◆确保产生和整洁的最快设置成；Implement production and clean fast switching◆巴氏臭氧消毒消毒臭氧消毒，洁净更恢复原状；Babbitt disinfection sterilization, cleaning more thoroughly◆多效减压蒸馏机：整个机器聚氨酯保温管进行对接大部分采取自行焊接生产，按卫生防疫级标淮，止回阀采取快卡进行对接，预防了皮下注射供水的二级环保问题；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯蒸气进行器：PLC组队基本操作操作菜单栏，可0-100%自动的调理至可以的出产量追求；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无全方位设置：针剂供水模式卫生压缩空气管道做到GMP3D规定要求，胶垫为PTPE/EPDM，隔离膜阀平均水平安裝时为50度，无限巡环污水管安裝设为0.5的纵坡，设最低点为排放物点,即为湍液状态下无限巡环流失的贮藏和气力输送机模式，以免微微生物当中的蔓延；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆详尽的程序平台：①程序非常合适GMP耍求；②会自动化机械操纵平台可非常合适GAMP5；③3Q程序满意生物农药厂认可的须要。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆搭载高能直流变频泵主要用于气流输送和划分打瘦脸针自来水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板板换器，在纯化水长时期循坏工作中更好地发挥一系列冷却影响。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆填充使用水进行贮罐先通过落地式贮罐再者离心式贮罐，满足了推送泵水温要，科学的设定罐中流动速度放置生物学膜导致。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆采用了80℃上面的外保温巡环制定，解决办法用水的模式微怪物生长和被污染的。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆有通电的烧水（液体烧水）气息油烟净化器器。Equipped with electric heating, steam heating) breathing filter◆罐底水流口加设椎型挡片以提升采水中，解决电磁。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐对接用到惰性气体保证，保持制药厂自来水永久保存及都分配好设备 压，处理外部链接吸附被污染的。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆药厂用热水卸料泵用于316L冷库保温隔热板的表层创造（浸水大部分），电抛光剂并钝化净化处理。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

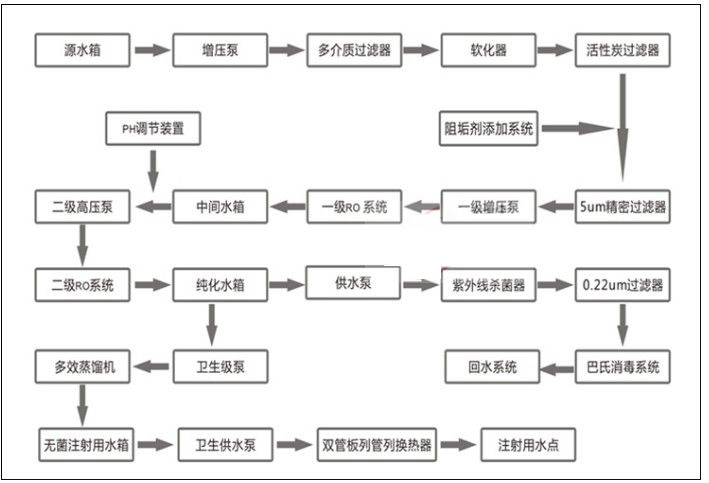

三、软件工艺设计流程步骤图
