主要用途与介简/Brief Introduction：

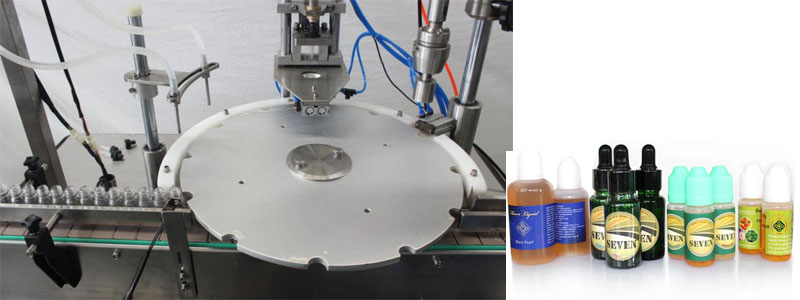

机器可适合用在于2-30ML种种面料的方形扁形泡沫塑料或安全玻璃瓶子的眼药粉装罐.机器由高高精准度轴承医院精度等级医院出具精度等级等分盘导航确定上塞上盖;迅快慢轴承医院传送出具旋盖头的升降系统;恒发动机功率旋盖;蠕动消化泵测量装罐;触控屏管理.无瓶不装罐,不用内塞,外盖.具导航确定准确度,传送市场平稳,保障饮料瓶盖,测量准.操作使用简单等缺点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优势特点/Characteristic：

◆微笔记本更改、装量精密、操作流程便捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机设备发动机转速可实施无级变速直流变频调压。the mainframe running speed is stepless frequency conversion.◆制造量重新一定量设定。the product quantity can be controlled. ◆不同出现问题报错基本功能(如低压力。无装灌、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆主动暂停服务功能表，对某个正轨出来间断无灌装线、无内塞事情可主动暂停服务。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技艺指标/Main Technical Parameters：

适用性规格参数Filling Volume	2-30ml
的生产能分析力Productivity	30-60瓶/分  7🐷0-100瓶/分30-60bottles/min    70-100bottles/min
灌装线计算精度Filling Precision	≤±1%
电原 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
主动上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
马力 Power	2.0 kw
器机总重量Weight	550 kg
样貌尺寸大小Dimension	1800*1000*1500mm
